ASTM 0.2mm 1.5mm G90 Hot Dip Galvanized Steel Sheet Z275 SGCC Regular Spangle

ASTM 0.2mm 1.5mm G90 Hot Dip Galvanized Steel Sheet Z275 SGCC Regular Spangle

  • High Light

    G90 hot dip galvanized steel sheet

    ,

    1.5mm astm steel sheet

    ,

    0.2mm hot dip galvanized steel sheet

  • Grade
    DX51D/S280GD/ S350GD/DX53D
  • Length
    Customer's Requirement
  • Width
    30mm-1500mm Or As Your Requirement
  • TS350GD/TS550GD/DX51D+Z Q195-q345 Keyword
    Galvanized Steel Sheet
  • Surface
    Galvanized Coated
  • Use
    Metal Roofing Building Steel Material
  • MOQ
    1 Ton
  • Delivery Time
    15-20 Days
  • Place of Origin
    China
  • Brand Name
    NADONG
  • Certification
    ISO SGS
  • Model Number
    400
  • Minimum Order Quantity
    1 Ton
  • Price
    $500-$1000
  • Packaging Details
    According to customer needs
  • Delivery Time
    15 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000 ton per month

ASTM 0.2mm 1.5mm G90 Hot Dip Galvanized Steel Sheet Z275 SGCC Regular Spangle

ASTM 0.2mm 1.5mm G90 Galvanized Steel Sheet Z275 SGCC Regular Spangle



Details

(1) Galvanized products have a long service life. Compared with different types of products, the service life of galvanized sheet and cold rolled sheet can be extended more than 1 times.

(2) Can be directly plated on carbon nitride steel and cast iron.

(3) High current efficiency.

(4) The waste liquid treatment is convenient, only zinc with high PH value can be precipitated.

(5) Good electrical conductivity, power saving.

(6) Hydrogen brittleness is small.

(7) Bright coating can be obtained at a higher temperature.

(8) Bath stability and low toxicity, strong environmental protection, is also the product of many industries to promote. With low production cost and wide application, it plays an important role in many industries.



Specfications



item
Galvanized Sheet
Width
600-1250 mm
Thickness
0.12- 30 mm
Standard
ISI, ASTM, BS, DIN, GB, JIS, etc
Zinc Layer Thickness
30 g-275 g/㎡
Processing Service
Bending, Welding, Decoiling, Punching, Cutting
Delivery Time
7-15 days
Package
Standard Seaworthy Package
Payment Terms
30%TT Advance + 70% Balance



Chemical Composition



Specification Grade Chemical Composition(wt%)
C Mn Ni Cr Mo Ti
ASTMJIS 316L/022Cr17Ni12Mo2 ≤0.03 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 -
JIS SUS316L ≤0.03 ≤2.0 12.0-15.0 16.0-18.0 2.0-3.0 -
ASTMJIS 316Ti/SUS 316Ti ≤0.08 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 5*(C+N)-0.7



Properties

Spec Grade Mechanical Property Physical Property

Y.S

(N/MM2)

T.S

(N/MM2)

EL

(%)

HRB

Specific Heat

(J/g℃)

Modulus of Elasticity (KN/mm2)
ASTM/GB 316L/022Cr17Ni12Mo2 ≥170 ≥485 ≥40 ≤95 0.5 193
JIS SUS316L ≥175 ≥480 ≥40 ≤90 193
ASTM 316Ti ≥205 ≥515 ≥40 ≤95 0.5 200

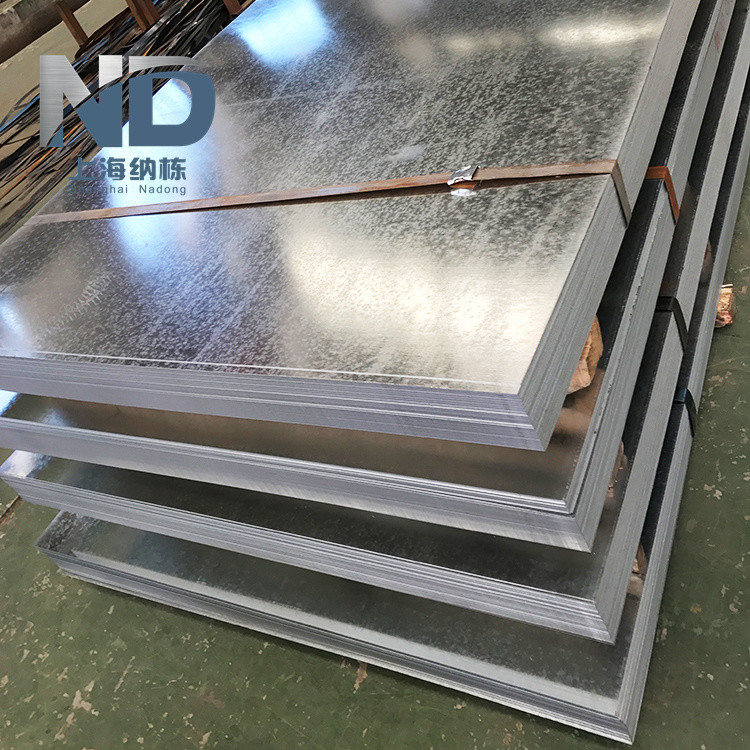

ASTM 0.2mm 1.5mm G90 Hot Dip Galvanized Steel Sheet Z275 SGCC Regular Spangle 0

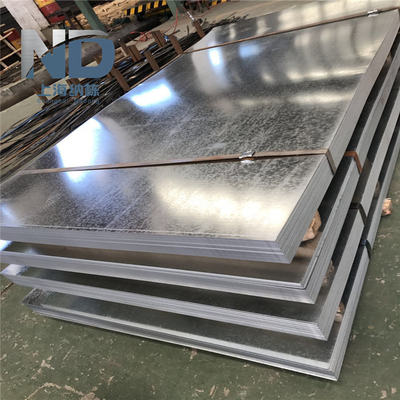

ASTM 0.2mm 1.5mm G90 Hot Dip Galvanized Steel Sheet Z275 SGCC Regular Spangle 1

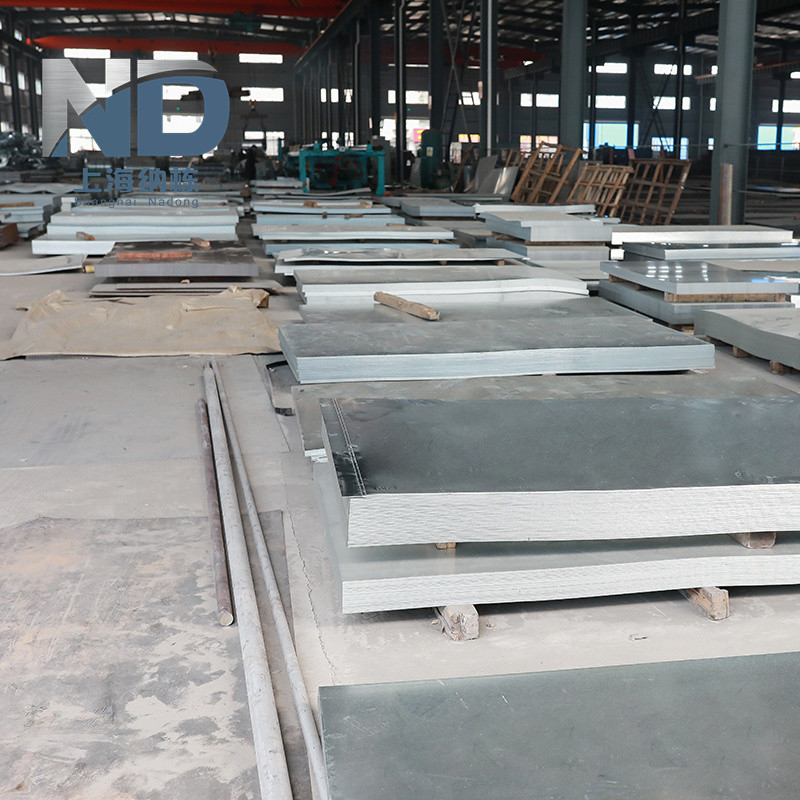

ASTM 0.2mm 1.5mm G90 Hot Dip Galvanized Steel Sheet Z275 SGCC Regular Spangle 2



Applications:

316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.



316Ti: Mainly used for industrial components.
