Zinc Cold Rolled Galvanized Steel Coil Ppgl Steel Coil Prepainted A653 Grade

Zinc Cold Rolled Galvanized Steel Coil Ppgl Steel Coil Prepainted A653 Grade

  • High Light

    Zinc Galvanized Steel Coil

    ,

    A653 corrugated galvanized steel sheet

    ,

    Cold Rolled Galvanized Steel Coil

  • Grade
    DX51D,CGCC,DC51D,CGLCC
  • Length
    Customer Requested
  • Special Use
    High-strength Steel Plate
  • Tolerance
    ±5%
  • Type
    Hot-Galvanized Steel Sheet
  • Advantage
    High Quality And Good Price
  • Application
    Onstruction, Making Pipes,bicycle Structures, Bo
  • Shape
    Flat.sheet
  • Place of Origin
    China
  • Brand Name
    NADONG
  • Certification
    ISO SGS
  • Model Number
    400
  • Minimum Order Quantity
    1 Ton
  • Price
    $500-$1000
  • Packaging Details
    According to customer needs
  • Delivery Time
    15 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000 ton per month

Zinc Cold Rolled Galvanized Steel Coil Ppgl Steel Coil Prepainted A653 Grade

Zinc Cold Rolled Ppgl Steel Coil Prepainted A653 Grade



Color-coated coils are based on hot-dip galvanized sheets, electro-galvanized sheets, etc. After surface pretreatment (chemical degreasing and chemical conversion treatment), one or several layers of organic coatings are applied on the surface, and then baked cured product. It is named after the color steel coil coated with organic coatings of various colors, referred to as color coated coil.



Contents
PREPAINTED GALVANIZED – PPGI
PREPAINTED GALVALUME – PPGL
BASE METAL
GALVANIZED
GALVALUME / ALUZINC
STANDARDS
JIS G 3312-CGCC, CGC340-570, (G550),
ASTM A -755M CS-B, SS255-SS550
JIS G 3312-CGLCC, CGLC340-570, (G550),
ASTM A -755M CS-B, SS255-SS550
THICKNESS
0.14~2.0 mm
0.14~2.0 mm
Width
750~1500 mm
750~1500 mm
Cut to length
200mm-5000mm
200mm-5000mm
Coil ID
508/610 mm
508/610 mm
Substrate
Soft, Medium, Hard
Soft, Medium, Hard
Coating Mass
Z 40-275 (g/m2)
AZ 40-150 (g/m2)
Paint Systems
Primers: Epoxy, PU
Top Coating:
Polyester (RMP/PE)
Silicon Modified Polyester (SMP)
Poly Vinyl Di Flouride (PVDF)
Back Coating: Epoxy, Polyester, PU
Primers: Epoxy, PU
Top Coating:
Polyester (RMP/PE)
Silicon Modified Polyester (SMP)
Poly Vinyl Di Flouride (PVDF)
Back Coating: Epoxy, Polyester, PU
Coating
20 – 50 Microns
20 – 50 Microns
Colours
As Per RAL Chart/Customer requirements.
As Per RAL Chart/Customer requirements.
Surface Finishes
Glossy and Matte
Glossy and Matte



Chemical Composition



Specification Grade Chemical Composition(wt%)
C Mn Ni Cr Mo Ti
ASTMJIS 316L/022Cr17Ni12Mo2 ≤0.03 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 -
JIS SUS316L ≤0.03 ≤2.0 12.0-15.0 16.0-18.0 2.0-3.0 -
ASTMJIS 316Ti/SUS 316Ti ≤0.08 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 5*(C+N)-0.7



Properties

Spec Grade Mechanical Property Physical Property

Y.S

(N/MM2)

T.S

(N/MM2)

EL

(%)

HRB

Specific Heat

(J/g℃)

Modulus of Elasticity (KN/mm2)
ASTM/GB 316L/022Cr17Ni12Mo2 ≥170 ≥485 ≥40 ≤95 0.5 193
JIS SUS316L ≥175 ≥480 ≥40 ≤90 193
ASTM 316Ti ≥205 ≥515 ≥40 ≤95 0.5 200

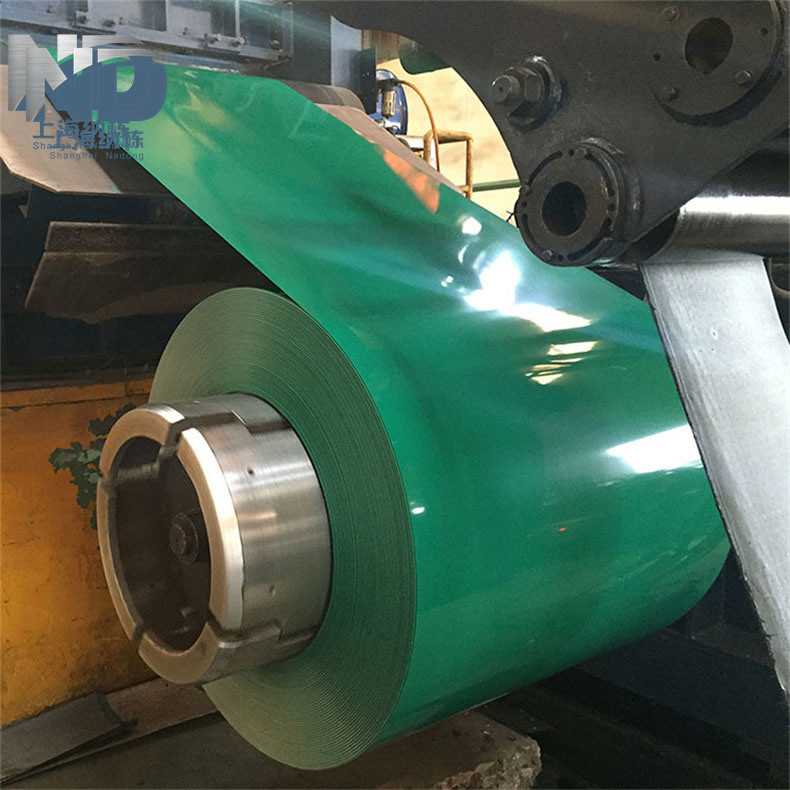

Zinc Cold Rolled Galvanized Steel Coil Ppgl Steel Coil Prepainted A653 Grade 0

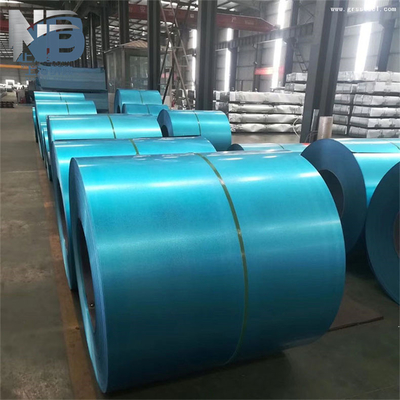

Zinc Cold Rolled Galvanized Steel Coil Ppgl Steel Coil Prepainted A653 Grade 1

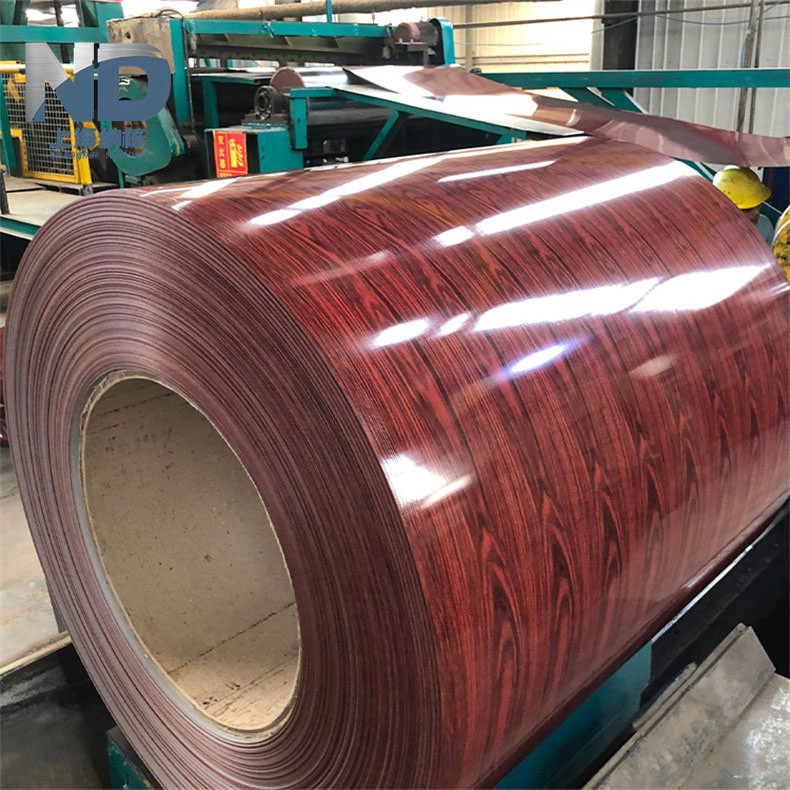

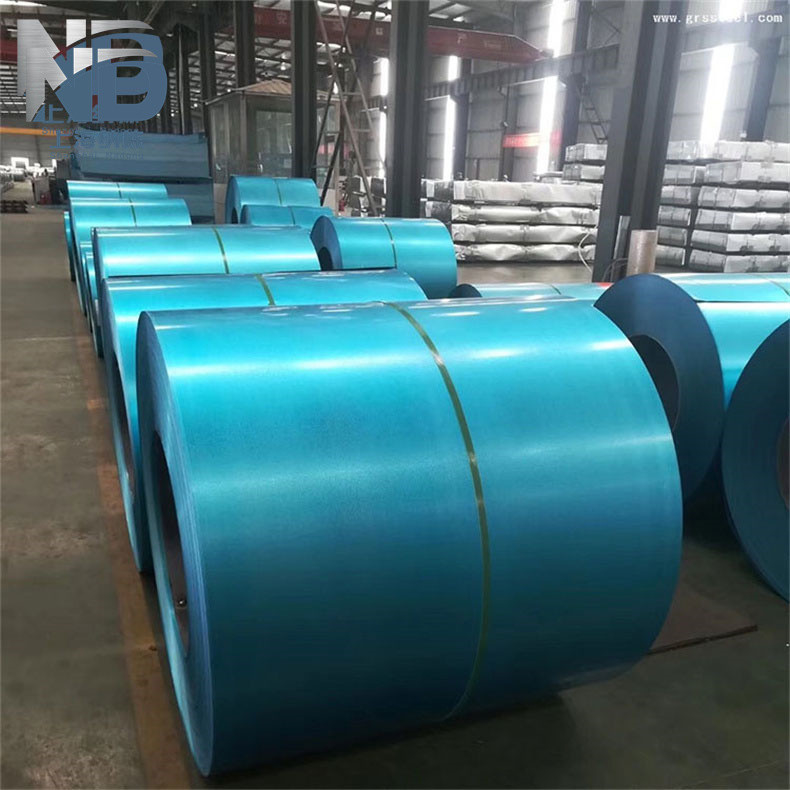

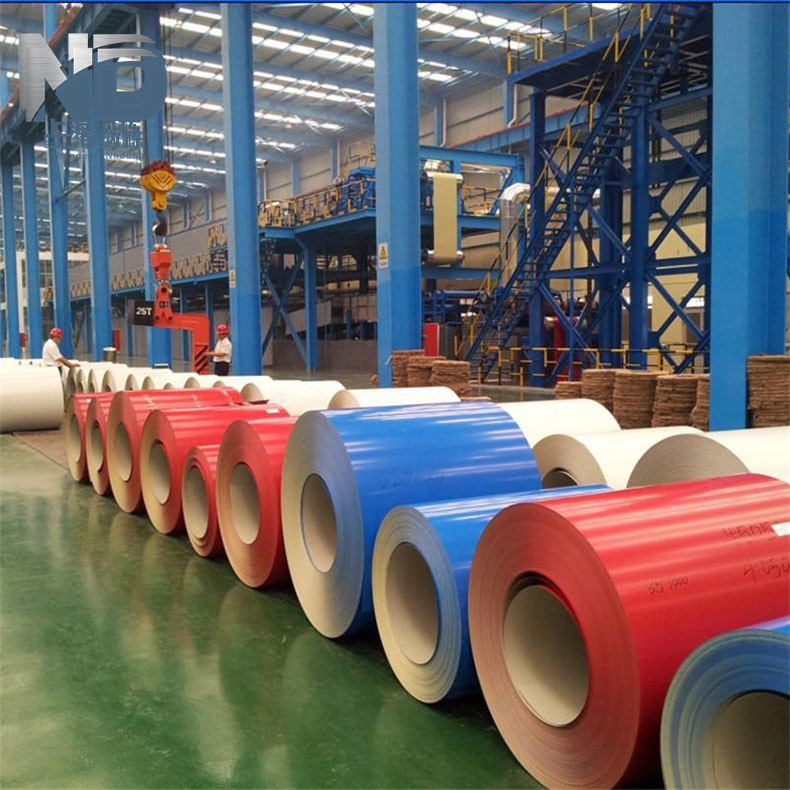

Zinc Cold Rolled Galvanized Steel Coil Ppgl Steel Coil Prepainted A653 Grade 2Zinc Cold Rolled Galvanized Steel Coil Ppgl Steel Coil Prepainted A653 Grade 3Zinc Cold Rolled Galvanized Steel Coil Ppgl Steel Coil Prepainted A653 Grade 4

Zinc Cold Rolled Galvanized Steel Coil Ppgl Steel Coil Prepainted A653 Grade 5











Applications:

316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.



316Ti: Mainly used for industrial components.
