High Light
PPGI Galvanized Steel Coil
,DC51D Cold Rolled Steel Coil
,Galvanized Steel Coil Slit Edge
-
GradeDC51D
-
Length2000 3000 6000mm
-
Zinc Coating30-275g/m2
-
StandardASTM, GB, JIS
-
TypeCold Rolled Steel Sheet
-
SpangleBig Medium Small Zero
-
Special UseHigh-strength Steel Plate
-
TechniqueHot Rolled
-
Place of OriginChina
-
Brand NameNADONG
-
CertificationISO SGS
-
Model Number400
-
Minimum Order Quantity1 Ton
-
Price$400-$1000
-
Packaging DetailsAccording to customer needs
-
Delivery Time15 working days
-
Payment TermsL/C, T/T
-
Supply Ability1000 ton per month

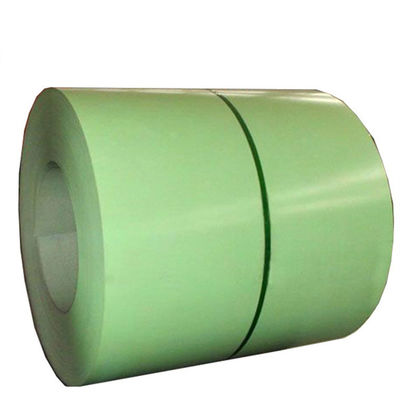

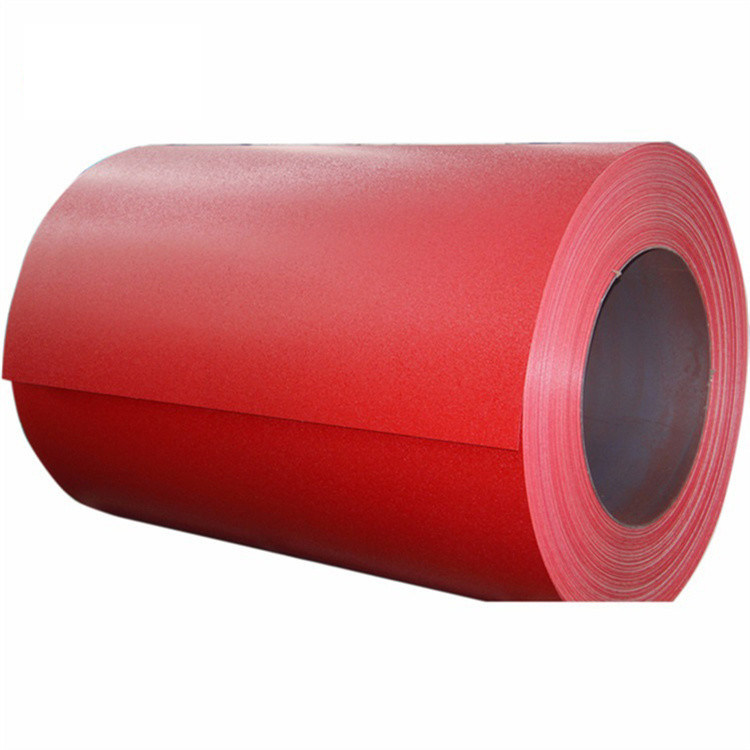

Cold Rolled PPGI Prepainted Galvanized Steel Coil With Slit Edge
Cold Rolled PPGI Prepainted Galvanized Steel Coil With Slit Edge
|
Hot dipped galvanized steel sheet & coil is made of carbon steel coated in zinc utilizing the hot-dip process. The end result of this process is a layer of zinc on each side of the steel sheet or coil that is tightly adhered to the steel through the formation of an iron-zinc alloy bonding layer. This bonding layer is formed by a diffusion process while the heated steel is in contact with molten zinc. We can provide hot dipped galvanized steel sheet & coil to meet your ASTM requirements with customer-driven surface finish options. |
| Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
| Type | Coil/Sheet/Plate/Strip |
| Thickness | 0.12-6.00mm,or customer's requirement |
| Width | 600mm-1500mm, according to customer's requirement |
| Type of Coating | Hot Dipped Galvanized Steel(HDGI) |
| Zinc Coating | 30-275g/m2 or as requirement |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Quality | Approved by SGS,ISO |
| ID | 508mm/610mm |
| Coil Weight | 3-20 metric ton per coil or as customer requirements |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement |
Chemical Composition
| Specification | Grade | Chemical Composition(wt%) | ||||||
| C | Mn | Ni | Cr | Mo | Ti | |||
| ASTMJIS | 316L/022Cr17Ni12Mo2 | ≤0.03 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | - | |
| JIS | SUS316L | ≤0.03 | ≤2.0 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | - | |
| ASTMJIS | 316Ti/SUS 316Ti | ≤0.08 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | 5*(C+N)-0.7 | |
Properties
| Spec | Grade | Mechanical Property | Physical Property | ||||
|
Y.S (N/MM2) |
T.S (N/MM2) |
EL (%) |
HRB |
Specific Heat (J/g℃) |
Modulus of Elasticity (KN/mm2) | ||
| ASTM/GB | 316L/022Cr17Ni12Mo2 | ≥170 | ≥485 | ≥40 | ≤95 | 0.5 | 193 |
| JIS | SUS316L | ≥175 | ≥480 | ≥40 | ≤90 | 193 | |
| ASTM | 316Ti | ≥205 | ≥515 | ≥40 | ≤95 | 0.5 | 200 |
Applications:316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.
316Ti: Mainly used for industrial components.
|
Our products are sold all over the world, you can rest assured.
