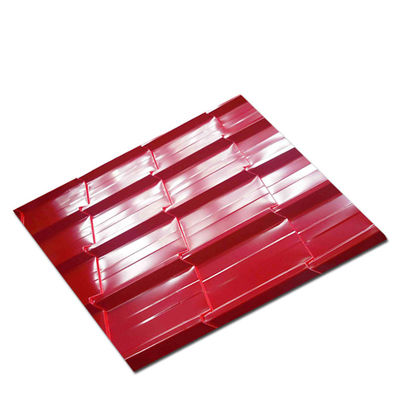

DX53D Corrugated Galvanized Sheet Metal Corrugated Galvanised Iron Sheets

DX53D Corrugated Galvanized Sheet Metal Corrugated Galvanised Iron Sheets

  • High Light

    DX53D corrugated galvanized sheet metal

    ,

    0.12mm corrugated galvanised iron sheets

    ,

    4.75mm corrugated galvanized sheet metal

  • Grade
    DX53D
  • Length
    Customer's Requirement
  • Width
    800-1600mm Or Customers Required
  • Thickness
    0.12-4.75mm
  • Processing Service
    Decoiling, Cutting, Punching, Painting
  • Color
    RAL Color Or As Request
  • Package
    Waterproof Paper With Steel Bundles
  • Standard
    ASTM, Bs, DIN, GB, JIS
  • Place of Origin
    China
  • Brand Name
    NADONG
  • Certification
    ISO SGS
  • Model Number
    400
  • Minimum Order Quantity
    1 Ton
  • Price
    $400-$900
  • Packaging Details
    According to customer needs
  • Delivery Time
    15 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000 ton per month

DX53D Corrugated Galvanized Sheet Metal Corrugated Galvanised Iron Sheets

Prepainted galvanized Steel coil factory/sheet/PPGI/Iron steel



Products advantages :

1.save cost
2. Loading bearing: It can load 150 kg per square meter evenly;
3. Light weight: 5-6.0kg/square meter;
4. Water resistance: 100%;
5. Fire resistance: Self-extinguish off fire;
6. Anti corrosion;
7. Impact resistance and low temperature resistance;
8. Sound and heat insulation;
9. Small Thermal expansivity;
10. Environmental protection and energy conservation;
11. Easy to install

12.Color &Size are customized



Specfications



Product Name Roofing Steel Sheet Material Plate Q235B Corrugated Steel Roofing Sheet
Thickness 0.13-1.5mm
Material GI/PPGI steel coil prepainted galvanized steel coil
Surface treatment Zinc coated, color coated
Zinc coating 40-275gram/m2
Width Generally 750mm/ 820mm/ 840mm/ 850mm/ 900mm/ 910mm/ 1050mm/ 1250mm
Length Any length, according to the transportation, usually less than 12m
Color

Standard color: blue, white, red

Special color: according to RAL colors

Characteristics

1.weather proof

2. .Anti rust

3. Fire proof

4. Heating insulation

5.Long life span: more than 20 years

Packing Plastic film + wooden pallet or as your request
Application

Building material

Container material





Chemical Composition



Specification Grade Chemical Composition(wt%)
C Mn Ni Cr Mo Ti
ASTMJIS 316L/022Cr17Ni12Mo2 ≤0.03 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 -
JIS SUS316L ≤0.03 ≤2.0 12.0-15.0 16.0-18.0 2.0-3.0 -
ASTMJIS 316Ti/SUS 316Ti ≤0.08 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 5*(C+N)-0.7



Properties

Spec Grade Mechanical Property Physical Property

Y.S

(N/MM2)

T.S

(N/MM2)

EL

(%)

HRB

Specific Heat

(J/g℃)

Modulus of Elasticity (KN/mm2)
ASTM/GB 316L/022Cr17Ni12Mo2 ≥170 ≥485 ≥40 ≤95 0.5 193
JIS SUS316L ≥175 ≥480 ≥40 ≤90 193
ASTM 316Ti ≥205 ≥515 ≥40 ≤95 0.5 200
