PPGI Color Coated Corrugated Sheet Metal Roofing Panels 0.1mm - 0.8mm
-
High Light
PPGI corrugated sheet metal roofing panels
,0.1mm corrugated galvanized steel sheet
,0.8mm corrugated sheet metal roofing panels
-
GradeDX53D
-
LengthCustomer Requested
-
Width665-1100mm
-
Thickness0.1-0.8mm
-
CertificateAPI, Ce, RoHS, SNI, BIS, SASO, PVOC, SONCAP
-
CoatingZ30-Z40
-
StandardAiSi, ASTM, BS, DIN, GB, JIS, EN,AS ETC
-
Payment Term30%TT Advance + 70% Balance
-
Place of OriginChina
-
Brand NameNADONG
-
CertificationISO SGS
-
Model Number400
-
Minimum Order Quantity1 Ton
-
Price$400-$900
-
Packaging DetailsAccording to customer needs
-
Delivery Time15 working days
-
Payment TermsL/C, T/T
-
Supply Ability1000 ton per month

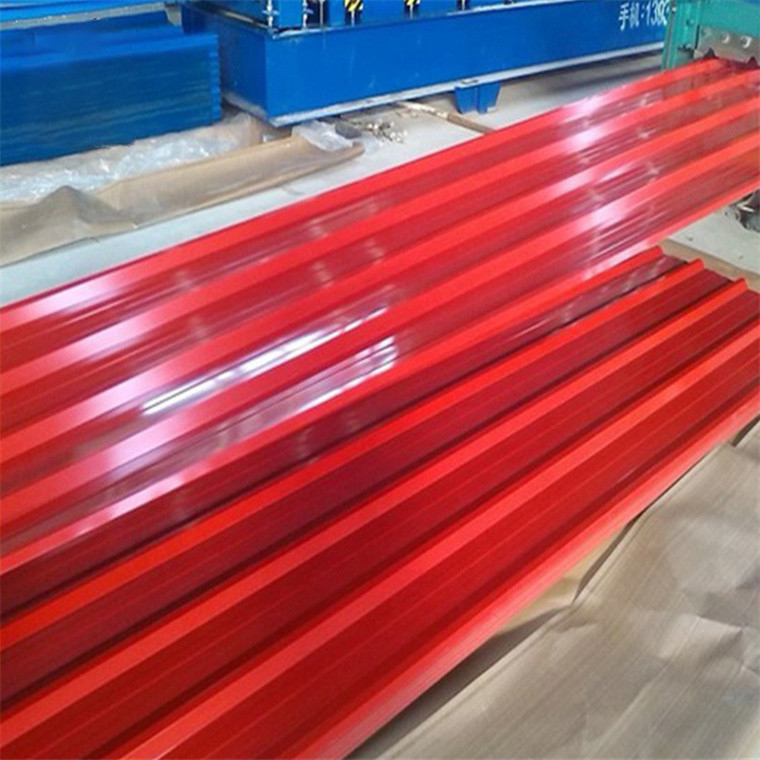

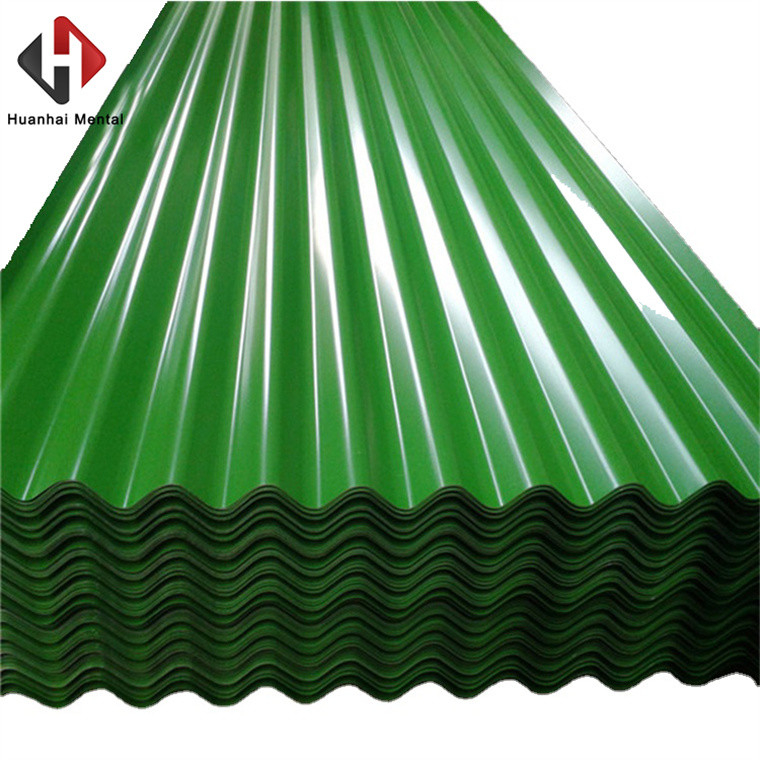

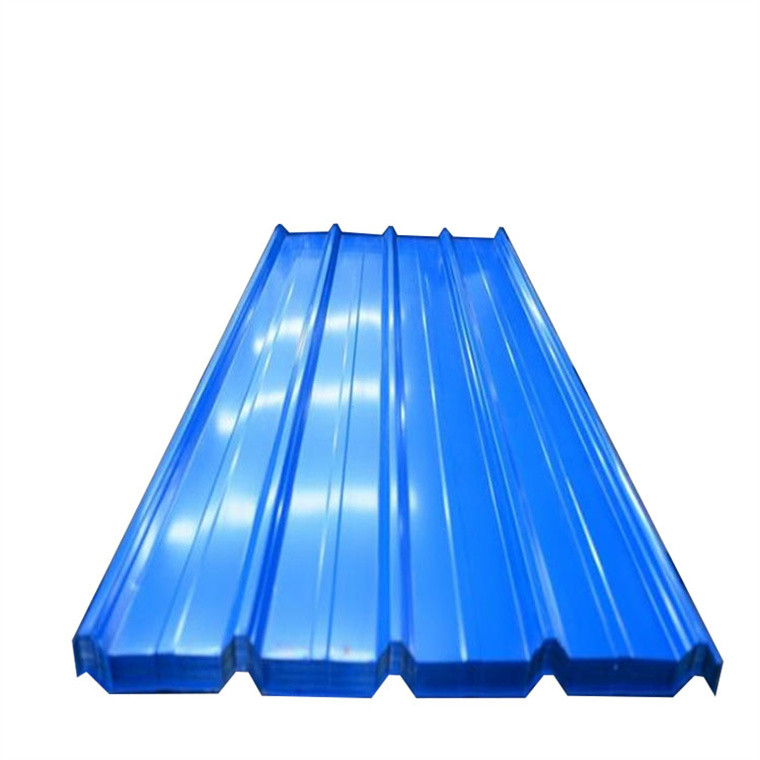

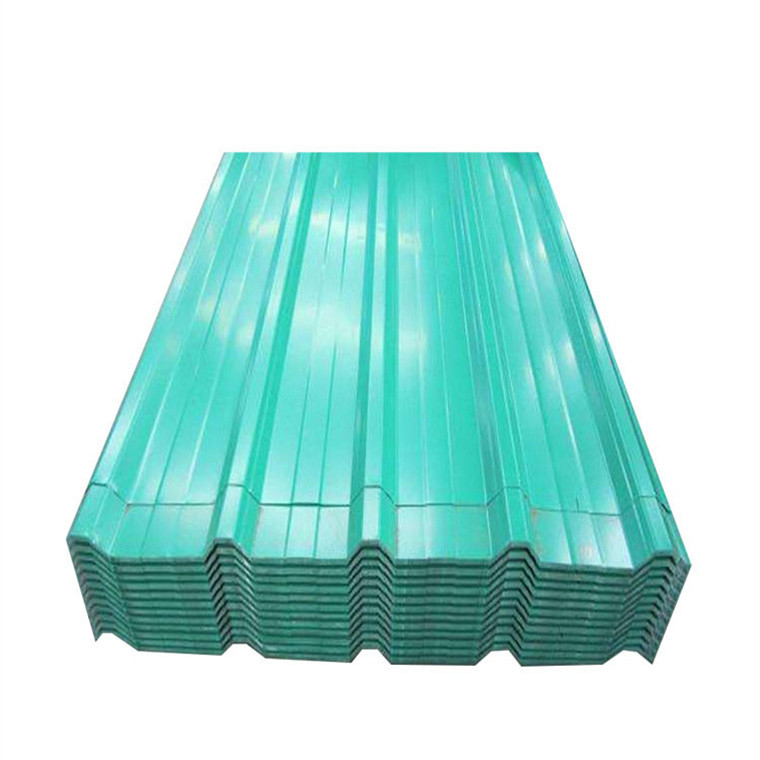

PPGI Color Coated Corrugated Sheet Metal Roofing Panels 0.1mm - 0.8mm
PPGI Color Coated Corrugated Prepainted Galvanized Steel Sheet Roofing Materials
|
We are specialized in the production and processing of metal raw material, such as carbon steel, galvanized, stainless steel,hot rolled /cold drawn steel products, Aluminum/Zincalume, copper products. We can supply different bars, round/square/rectangular tubes, steel strips/coils/sheets/plates, GI, PPGI, PPGL, wear-resistant steel, tin-plates, steel shapes, wires etc. |
Specfications
| Product Name | Roofing Steel Sheet Material Plate Q235B Corrugated Steel Roofing Sheet |
| Thickness | 0.13-1.5mm |
| Material | GI/PPGI steel coil prepainted galvanized steel coil |
| Surface treatment | Zinc coated, color coated |
| Zinc coating | 40-275gram/m2 |
| Width | Generally 750mm/ 820mm/ 840mm/ 850mm/ 900mm/ 910mm/ 1050mm/ 1250mm |
| Length | Any length, according to the transportation, usually less than 12m |
| Color |
Standard color: blue, white, red Special color: according to RAL colors |
| Characteristics |
1.weather proof 2. .Anti rust 3. Fire proof 4. Heating insulation 5.Long life span: more than 20 years |
| Packing | Plastic film + wooden pallet or as your request |
| Application |
Building material Container material |
Chemical Composition
| Specification | Grade | Chemical Composition(wt%) | ||||||
| C | Mn | Ni | Cr | Mo | Ti | |||
| ASTMJIS | 316L/022Cr17Ni12Mo2 | ≤0.03 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | - | |
| JIS | SUS316L | ≤0.03 | ≤2.0 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 | - | |
| ASTMJIS | 316Ti/SUS 316Ti | ≤0.08 | ≤2.0 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | 5*(C+N)-0.7 | |
Properties
| Spec | Grade | Mechanical Property | Physical Property | ||||
|
Y.S (N/MM2) |
T.S (N/MM2) |
EL (%) |
HRB |
Specific Heat (J/g℃) |
Modulus of Elasticity (KN/mm2) | ||
| ASTM/GB | 316L/022Cr17Ni12Mo2 | ≥170 | ≥485 | ≥40 | ≤95 | 0.5 | 193 |
| JIS | SUS316L | ≥175 | ≥480 | ≥40 | ≤90 | 193 | |
| ASTM | 316Ti | ≥205 | ≥515 | ≥40 | ≤95 | 0.5 | 200 |
Applications:316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.
316Ti: Mainly used for industrial components.
|
Our products are sold all over the world, you can rest assured.
