Square Polished 316 Stainless Steel Tube Stainless Steel Welded Tube

Square Polished 316 Stainless Steel Tube Stainless Steel Welded Tube

  • High Light

    316 stainless steel tube

    ,

    Stainless Steel Welded Tube

    ,

    SGS 316 stainless steel tube

  • Grade
    301L Series
  • Type
    Welded
  • Tolerance
    ±1%
  • Steel Grade
    301L, 301, 316L, 316, 304, 304L
  • Processing Service
    Bending, Welding, Decoiling, Punching, Cutting, Moulding
  • Surface
    BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
  • Outer Diameter
    10mm
  • Pipe End
    Plain End,beveled, Cut Quare,grooved,threaded
  • Place of Origin
    CHINA
  • Brand Name
    NADONG
  • Certification
    ISG SGS
  • Model Number
    316
  • Minimum Order Quantity
    1 Ton
  • Price
    $1200-$2000
  • Packaging Details
    According to customer needs
  • Delivery Time
    15 working days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000 ton per month

Square Polished 316 Stainless Steel Tube Stainless Steel Welded Tube

Manufacturer 316 Welded Polished Square Stainless Steel Welded Tube



430 ferritic stainless steel is a general-purpose steel with good corrosion resistance. It has better thermal conductivity than austenite, lower thermal expansion coefficient than austenite, heat fatigue resistance, addition of stabilizing element titanium, and better mechanical properties of the weld.



Specfications

product name
Stainless steel pipe
Grade
201.202.301.302.304.304L.309S.310S.316.316L.321.410.430.430A.440A.440B.440C.904L.2205.2507.2520 ect. Or Customized
Standard
GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Surface
Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish
(HL/Brushed),Ti-gold, Glossy matt,dull and so on.
specifications
Outer diameter
6mm-630mm or customized
Wall thickness
0.1-30mm or customized
Length
0.3-15.8m or customized
Technique
Cold rolled
welding or customized

Hot rolled
seamless
Test and Inspection
Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Thickness tolerance
±0.05mm



Chemical Composition

Specification Grade Chemical Composition(wt%)
C Mn Ni Cr Mo Ti
ASTMJIS 316L/022Cr17Ni12Mo2 ≤0.03 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 -
JIS SUS316L ≤0.03 ≤2.0 12.0-15.0 16.0-18.0 2.0-3.0 -
ASTMJIS 316Ti/SUS 316Ti ≤0.08 ≤2.0 10.0-14.0 16.0-18.0 2.0-3.0 5*(C+N)-0.7



Properties

Spec Grade Mechanical Property Physical Property

Y.S

(N/MM2)

T.S

(N/MM2)

EL

(%)

HRB

Specific Heat

(J/g℃)

Modulus of Elasticity (KN/mm2)
ASTM/GB 316L/022Cr17Ni12Mo2 ≥170 ≥485 ≥40 ≤95 0.5 193
JIS SUS316L ≥175 ≥480 ≥40 ≤90 193
ASTM 316Ti ≥205 ≥515 ≥40 ≤95 0.5 200

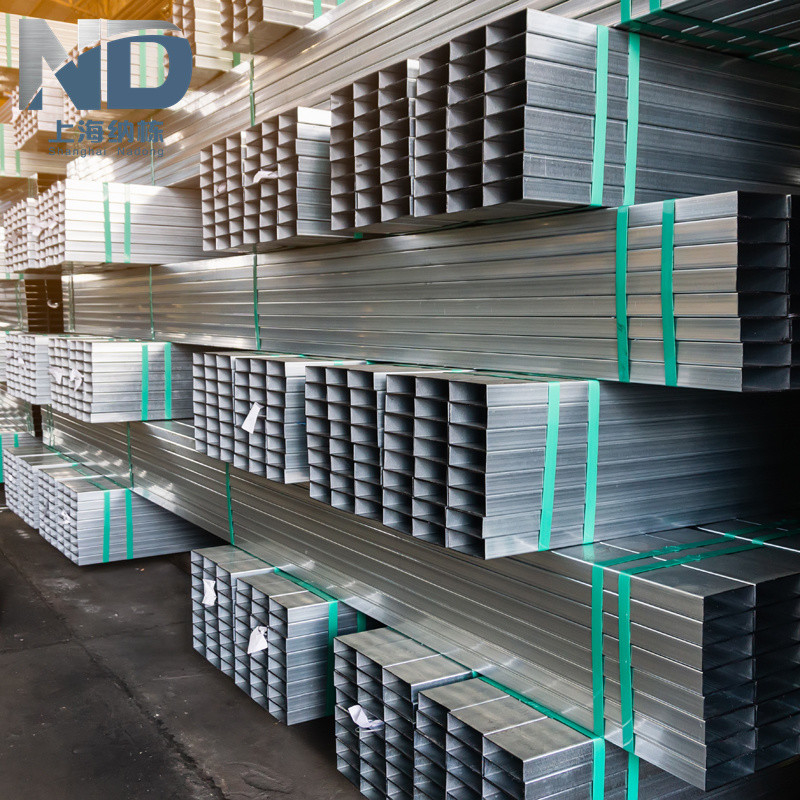

Square Polished 316 Stainless Steel Tube Stainless Steel Welded Tube 0

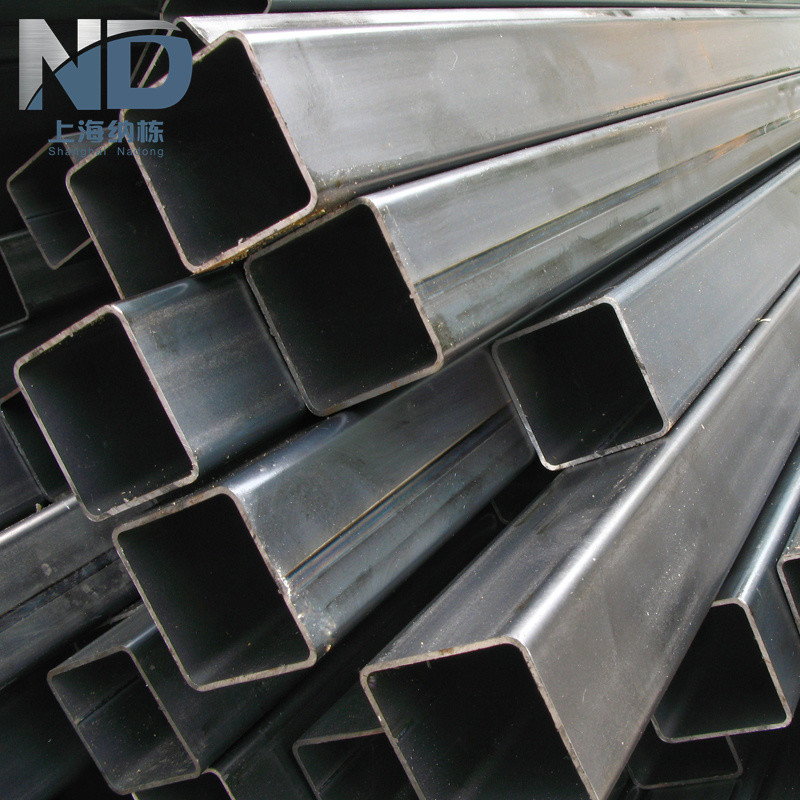

Square Polished 316 Stainless Steel Tube Stainless Steel Welded Tube 1Square Polished 316 Stainless Steel Tube Stainless Steel Welded Tube 2

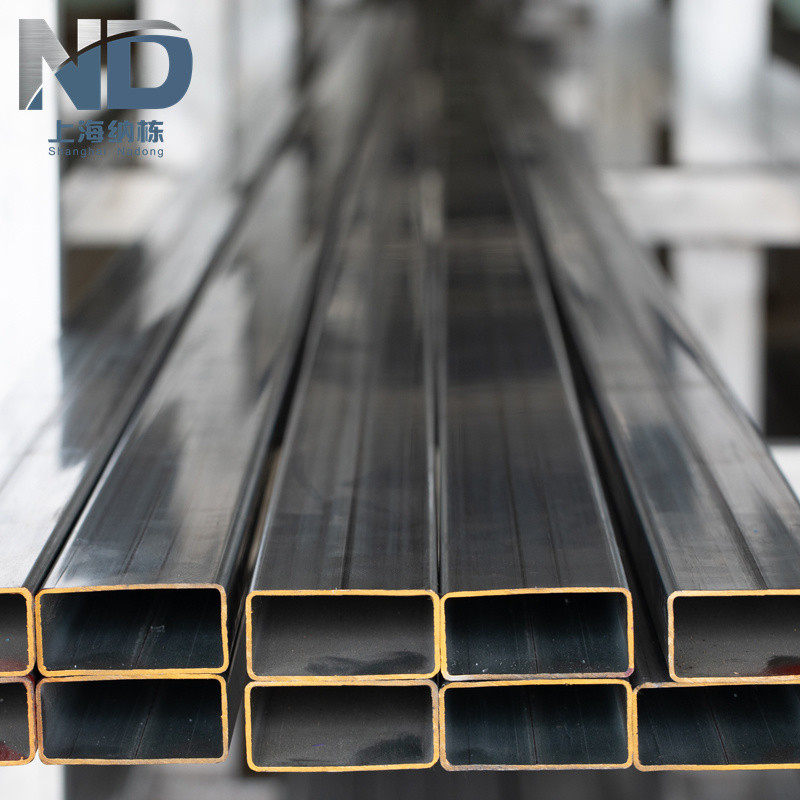

Square Polished 316 Stainless Steel Tube Stainless Steel Welded Tube 3



Applications:

316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.

316Ti: Mainly used for industrial components.



Square Polished 316 Stainless Steel Tube Stainless Steel Welded Tube 4

Square Polished 316 Stainless Steel Tube Stainless Steel Welded Tube 5
