5.8mm - 6m Length Welded Stainless Steel Tube 301L 301 316L

High Light

6m Welded Stainless Steel Tube
,
stainless steel pipe 301L 301 316L
,
5.8mm Stainless Steel Tube
Grade

300 Series
Length

5.8mm--6m Or As Customer's Requirement
Tolerance

±1%
Steel Grade

301L, 301, 316L, 316, 304, 304L
Processing Service

Bending, Welding, Decoiling, Punching, Cutting, Moulding
Market

Asia, Middle East, Africa, Europe
Factory

Yes
Certificate

ISO 9001-2008
Place of Origin

CHINA
Brand Name

NADONG
Certification

ISG SGS
Model Number

316
Minimum Order Quantity

1 Ton
Price

$1200-$2000
Packaging Details

According to customer needs
Delivery Time

15 working days
Payment Terms

L/C, T/T
Supply Ability

1000 ton per month

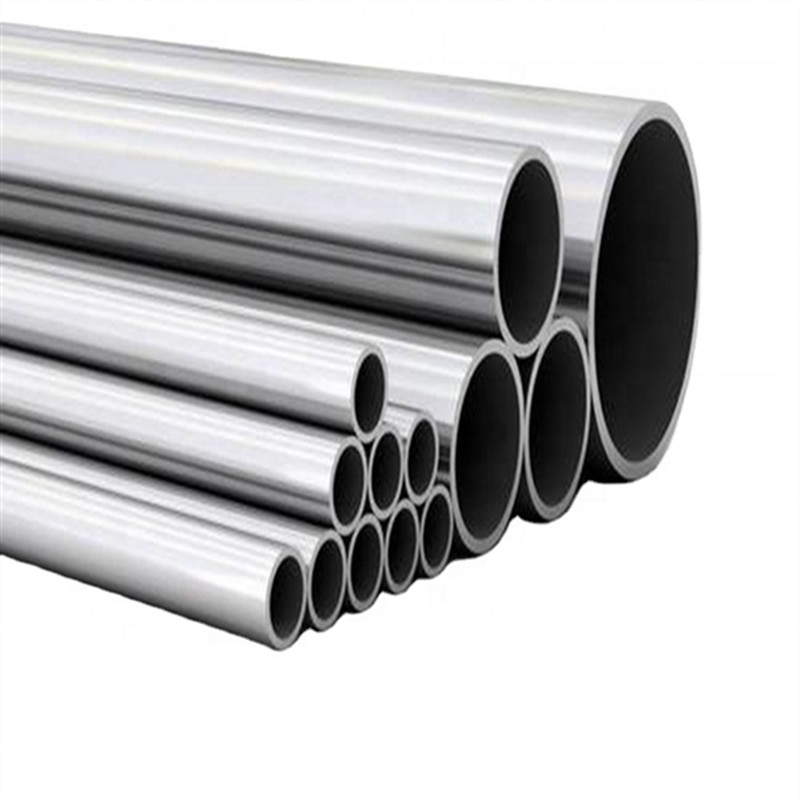

5.8mm - 6m Length Welded Stainless Steel Tube 301L 301 316L

Name: 5.8mm - 6m Length Welded Stainless Steel Tube 301L 301 316L
Brand: NADONG
SKU: 316
Price: 1200 USD
Availability: InStock
Rating: 5 (200 reviews)

button button

Get Price Contact Now

Wholesale High Quality Custom Cold-drawing Peel 316l Stainless Steel Pipe

420 stainless steel is a martensitic stainless steel with certain wear resistance and corrosion resistance, and high hardness. Applicable to all kinds of precision machinery, bearings, electrical, equipment, instruments, meters, transportation tools, household appliances, etc. It is mostly used to manufacture parts that are resistant to atmospheric, water vapor, water and oxidative acid corrosion.

Specfications

product name	Stainless steel pipe
Grade	201.202.301.302.304.304L.309S.310S.316.316L.321.410.430.430A.440A.440B.440C.904L.2205.2507.2520 ect. Or Customized
Standard	GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Surface	Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish (HL/Brushed),Ti-gold, Glossy matt,dull and so on.
specifications	Outer diameter	6mm-630mm or customized
	Wall thickness	0.1-30mm or customized
	Length	0.3-15.8m or customized
Technique	Cold rolled	welding or customized
	Hot rolled	seamless
Test and Inspection	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Thickness tolerance	±0.05mm

Chemical Composition

Specification	Grade	Chemical Composition(wt%)
Specification	Grade	C	Mn	Ni	Cr	Mo	Ti
ASTMJIS	316L/022Cr17Ni12Mo2	≤0.03	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	-
JIS	SUS316L	≤0.03	≤2.0	12.0-15.0	16.0-18.0	2.0-3.0	-
ASTMJIS	316Ti/SUS 316Ti	≤0.08	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	5*(C+N)-0.7

Properties

Spec	Grade	Mechanical Property				Physical Property
Spec	Grade	Y.S (N/MM2)	T.S (N/MM2)	EL (%)	HRB	Specific Heat (J/g℃)	Modulus of Elasticity (KN/mm2)
ASTM/GB	316L/022Cr17Ni12Mo2	≥170	≥485	≥40	≤95	0.5	193
JIS	SUS316L	≥175	≥480	≥40	≤90	0.5	193
ASTM	316Ti	≥205	≥515	≥40	≤95	0.5	200

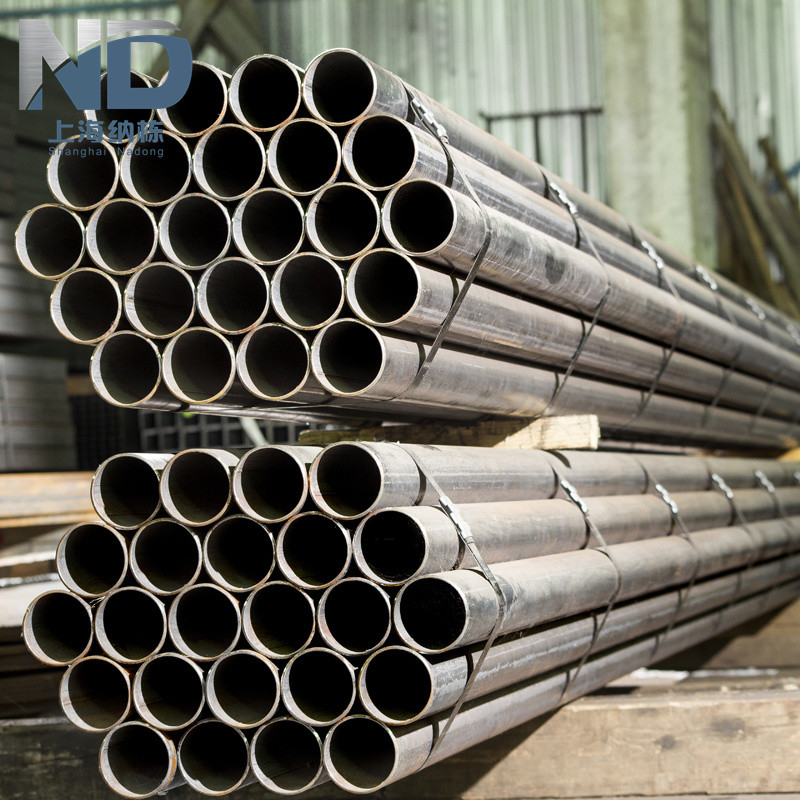

5.8mm - 6m Length Welded Stainless Steel Tube 301L 301 316L 0

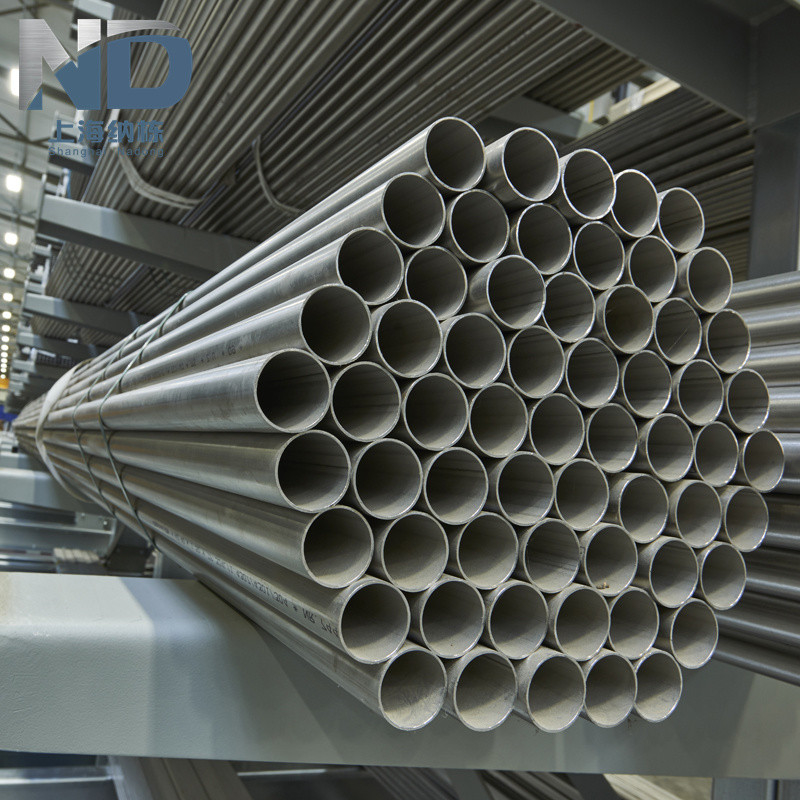

5.8mm - 6m Length Welded Stainless Steel Tube 301L 301 316L 1

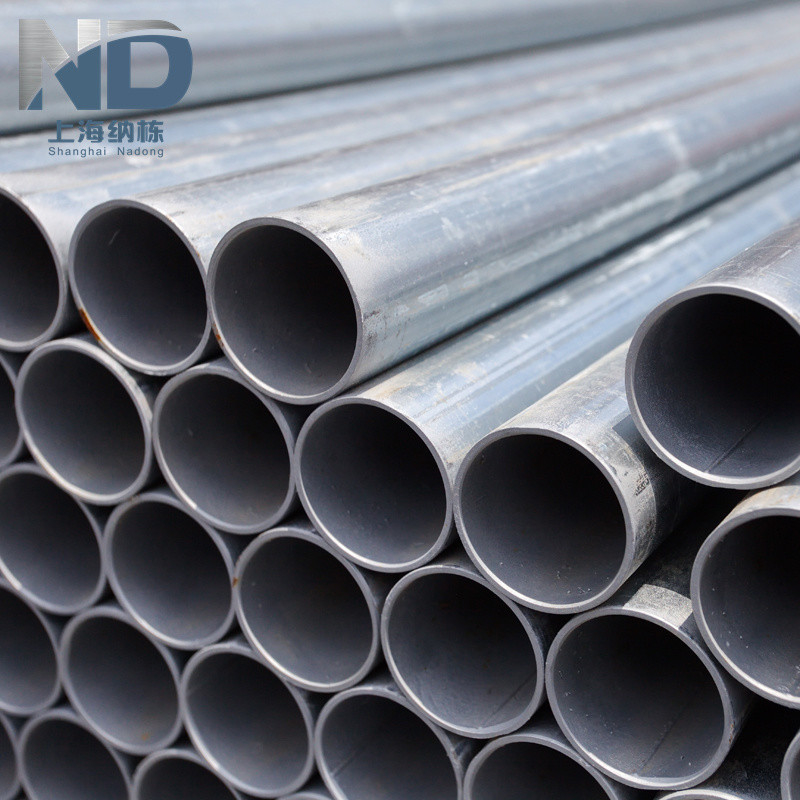

5.8mm - 6m Length Welded Stainless Steel Tube 301L 301 316L 3

Applications:

316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.

316Ti: Mainly used for industrial components.

5.8mm - 6m Length Welded Stainless Steel Tube 301L 301 316L 5
