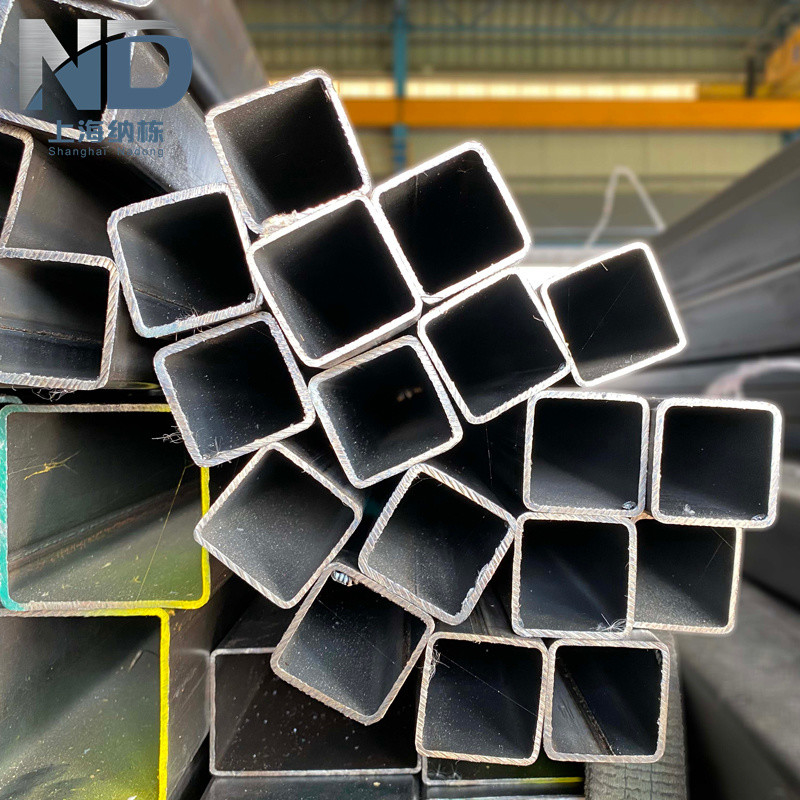

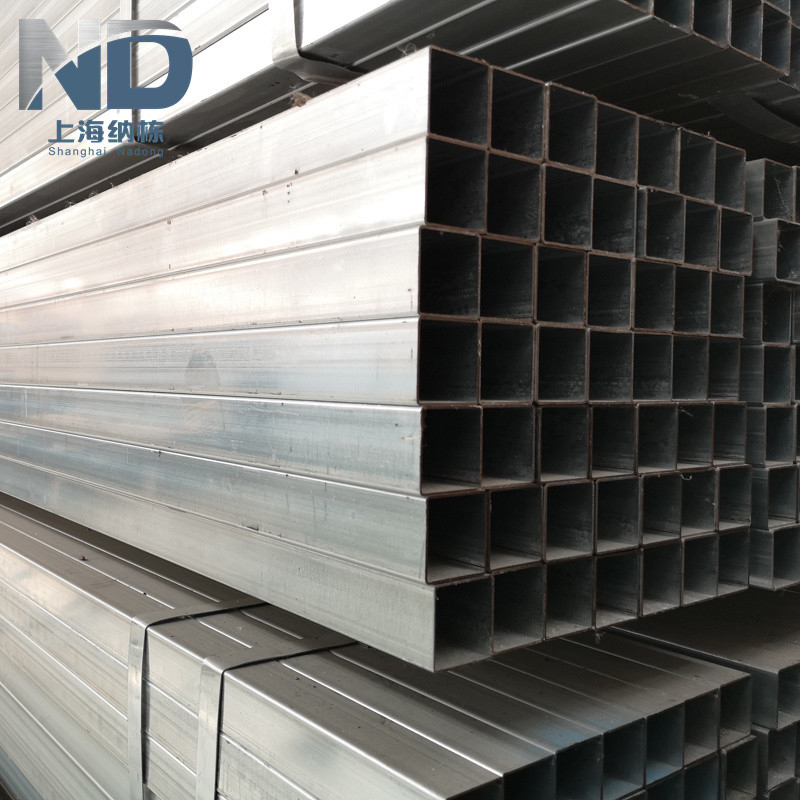

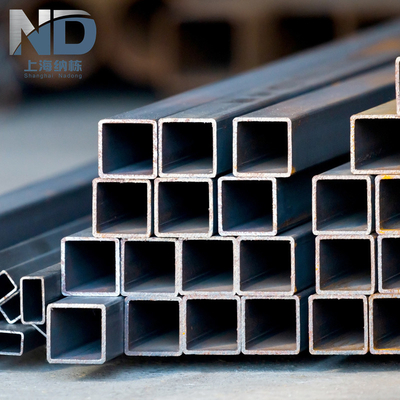

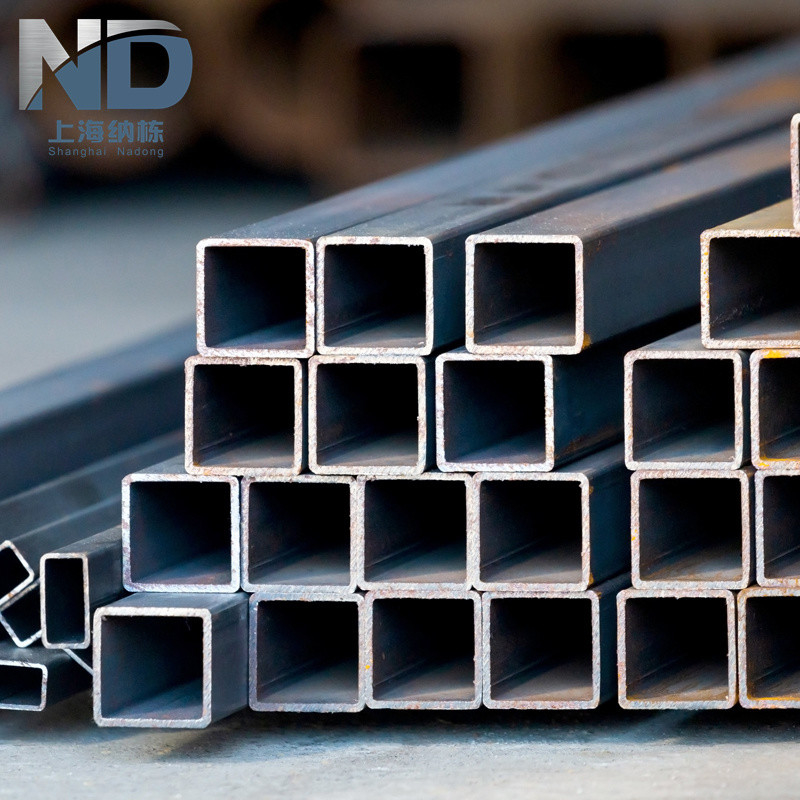

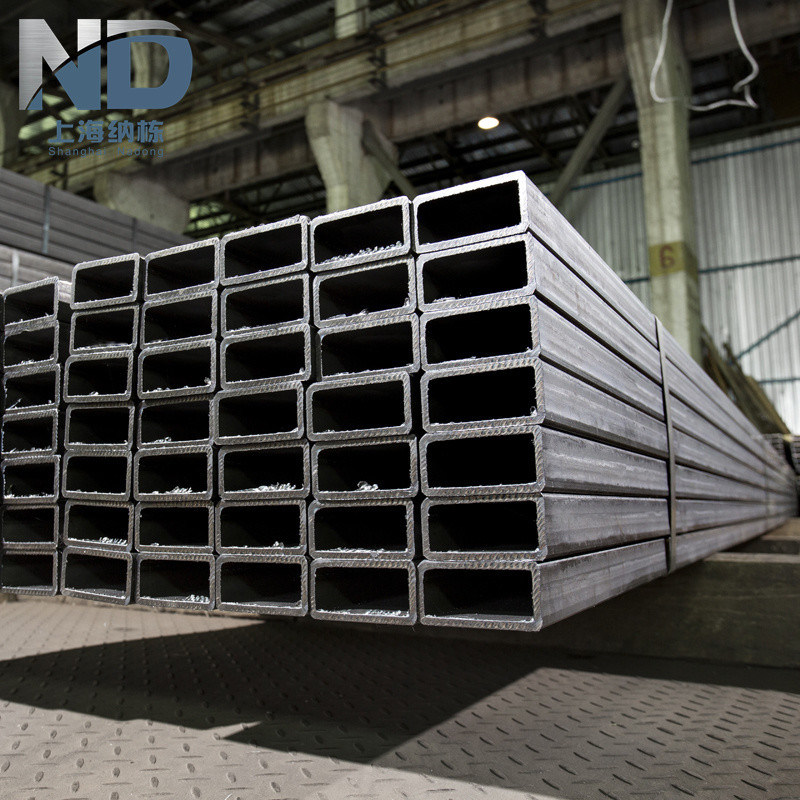

300 Series Polished Square Welded Stainless Steel Tube 4m - 6m

High Light

Square Welded Stainless Steel Tube
,
1 inch stainless pipe
,
Welded Stainless Steel Tube 4m
Grade

300 Series
Length

4~6m (or Customized)
Tolerance

±1%
Steel Grade

301L, 301, 316L, 316, 304, 304L
Processing Service

Bending, Cutting
Manfacture Technology

Cold Drawn/cold Rolled
OD Of SS Pipe

6 To 720mm, 1/8 To 36 Inches
Thickness

0.8mm-20 Mm
Place of Origin

CHINA
Brand Name

NADONG
Certification

ISG SGS
Model Number

316
Minimum Order Quantity

1 Ton
Price

$1000-$2200
Packaging Details

According to customer needs
Delivery Time

15 working days
Payment Terms

L/C, T/T
Supply Ability

1000 ton per month

300 Series Polished Square Welded Stainless Steel Tube 4m - 6m

Name: 300 Series Polished Square Welded Stainless Steel Tube 4m - 6m
Brand: NADONG
SKU: 316
Price: 1000 USD
Availability: InStock
Rating: 4.9 (116 reviews)

button button

Get Price Contact Now

Manufacturer 316 Welded Polished Square Stainless Steel Welded Tube

410 stainless steel is a stainless steel grade produced in accordance with the American ASTM standard, which is equivalent to China's 1Cr13 stainless steel, S41000 (American AISI, ASTM). It contains 0.15% carbon and 13% chromium.

Specfications

product name	Stainless steel pipe
Grade	201.202.301.302.304.304L.309S.310S.316.316L.321.410.430.430A.440A.440B.440C.904L.2205.2507.2520 ect. Or Customized
Standard	GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Surface	Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish (HL/Brushed),Ti-gold, Glossy matt,dull and so on.
specifications	Outer diameter	6mm-630mm or customized
	Wall thickness	0.1-30mm or customized
	Length	0.3-15.8m or customized
Technique	Cold rolled	welding or customized
	Hot rolled	seamless
Test and Inspection	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Thickness tolerance	±0.05mm

Chemical Composition

Specification	Grade	Chemical Composition(wt%)
Specification	Grade	C	Mn	Ni	Cr	Mo	Ti
ASTMJIS	316L/022Cr17Ni12Mo2	≤0.03	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	-
JIS	SUS316L	≤0.03	≤2.0	12.0-15.0	16.0-18.0	2.0-3.0	-
ASTMJIS	316Ti/SUS 316Ti	≤0.08	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	5*(C+N)-0.7

Properties

Spec	Grade	Mechanical Property				Physical Property
Spec	Grade	Y.S (N/MM2)	T.S (N/MM2)	EL (%)	HRB	Specific Heat (J/g℃)	Modulus of Elasticity (KN/mm2)
ASTM/GB	316L/022Cr17Ni12Mo2	≥170	≥485	≥40	≤95	0.5	193
JIS	SUS316L	≥175	≥480	≥40	≤90	0.5	193
ASTM	316Ti	≥205	≥515	≥40	≤95	0.5	200

300 Series Polished Square Welded Stainless Steel Tube 4m - 6m 0

300 Series Polished Square Welded Stainless Steel Tube 4m - 6m 1

300 Series Polished Square Welded Stainless Steel Tube 4m - 6m 3

Applications:

316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.

316Ti: Mainly used for industrial components.

300 Series Polished Square Welded Stainless Steel Tube 4m - 6m 5
